Wednesday, September 24, 2014

New, higher resolution digital elevation model data for Africa

Yesterday, it was announced that NASA released 30m resolution SRTM data for Africa. You can read the press release here.  I'm pretty happy they started with the African data - I am making some new maps of my research area this week, so it is exciting to be using higher res data (I have the 90m resolution data).

This morning I downloaded the new data for the Lake Malawi region from the USGS Earth Explorer and created a new raster image.  I use a technique posted in an ESRI blog to create pansharpened images. Essentially, this drapes the tinted elevation file over a hillshade, creating an image that shows relief without the need for making any layers transparent.

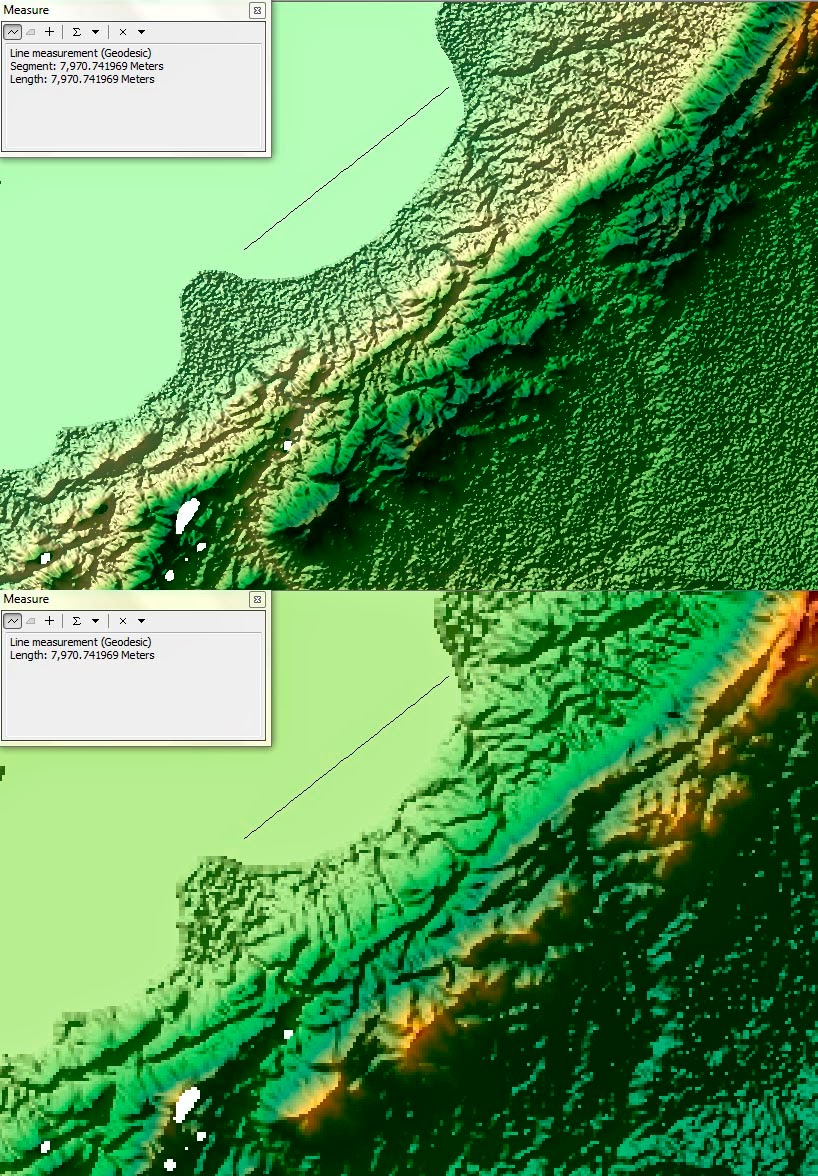

The image below compares the two datasets. The top image is the new SRTM data released yesterday and the bottom is the older, lower resolution data.  The diagonal line drawn through the top middle is about 7.97km long. There are still a few gaps in the new 30 m DEMs, but on a regional scale, there are far fewer than in the 90 m DEMs. Look how crisp and detailed the shoreline is now.

Top: 30 m SRTM. Bottom: 90m SRTM. North at the top.
Click to embiggen.

Not only will my maps look better with the newer DEMs, it is easier to find the onshore border faults of the rift basin with the higher resolution data (hint: I'm pretty sure one runs right through this image, approximately parallel to, and southeast of, the line I drew for a scale reference).
